Parallel and Perpendicular Lines
A
B
C
D
E
. . . .

Parallel Lines and Transversals

Theorem. Same-Side Exterior Angles Theorem
If two parallel lines are cut by a transversal, then the exterior angles on the same side of the transversal are supplementary

Prove this theorem as an exercise.

Another way of proving the Triangle Angle-Sum Theorem is by applying the postulate and theorems about the properties of angle pairs of parallel lines cut by a transversal.

Example

Prove the Triangle Angle-Sum Theorem, stating that the sum of the measures of the interior angles of any triangle is always 180 .


Solution

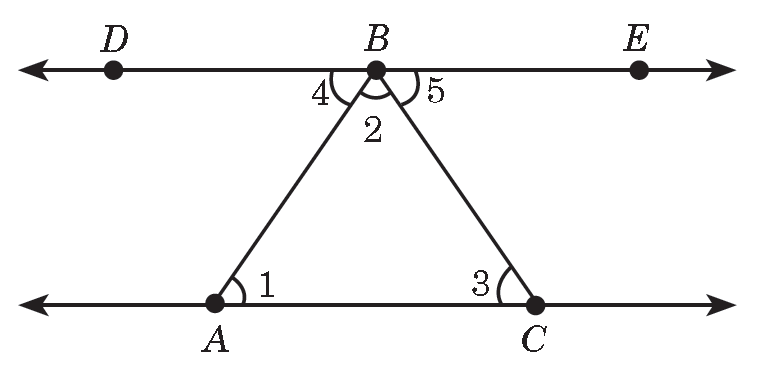

Given: ΔABC with interior angles 1, 2, and 3
Prove: m1+m2+m3=180°

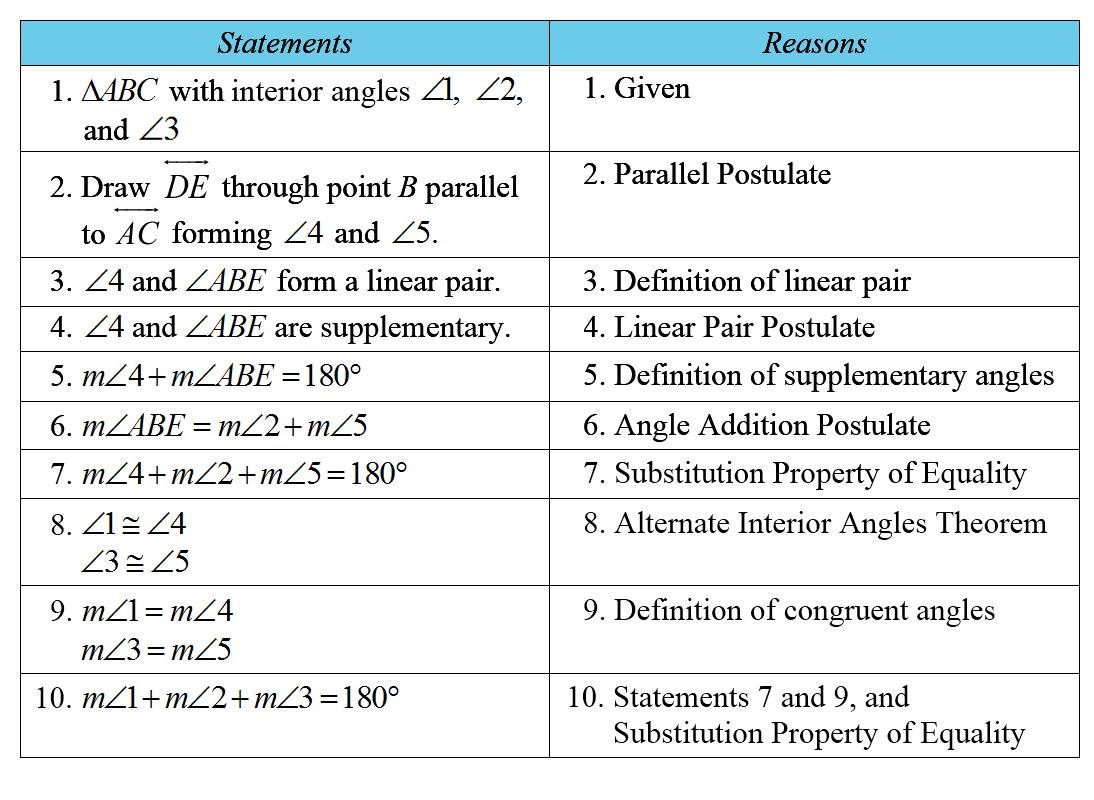

Proof:
